Exactly like the Cascade Rescue Standard Advance Series Model 200, the MAX is slightly larger to accommodate a full size 16' wide backboard.
Crafted of hand laminated composites, its shape, handrails and ample brackets provide maximum victim protection and comfort as well as optimum maneuverability for the litter attendant. There is no need for a backboard with this litter when the optional FastPax Rails are ordered. Patient straps securely immobilize patient to the bed of the litter. Excellent vertical raise handling characteristics - equally at home on snow, rock, ice or asphalt. Comes complete with Cascade Rescue's Patented Articulating Lift Points (ALP's). Slow pull test results are available underneath the resource section.
Features
- Exceptionally lightweight
- Structurally superior external composite shell
- 4 patented articulating lift points
- Independently tested to mil spec
- Available in 1 or 2 piece
Compatible with
Advance Series Equalizer Litter Handles, Cascade Rescue Trail Wheels, FastPax Rail System, and Advance Series Snow Kit.
General Specifications
- Size: 82' X 25' X 6'. Color: International Orange.
- Weight: Approximately 18-26 pounds**.
- Available in 1 or 2 Piece Models with Stainless Steel or Titanium Components.
**Note: Oversize shipping charges will apply. Please Contact our Pro Team for shipping quotes.
Stainless Litter Specifications
| Model | Advance 1 Piece MAX | Advance 2 Piece MAX |
| Item Number | CRC-RSL-M200M-1 | CRC-RSL-M200M-2 |
| Length | 82' (208 cm) | 82' (208 cm) |
| Width | 25' (63.5 cm) | 25' (63.5 cm) |
| Split Length | N/A | 42' (106.7 cm) |
| Depth | 5.5' (14 cm) | 5.5' (14 cm) |
| Weight Rating | 2500 lbs (11.12 kN) | 2500 lbs (11.12 kN) |
| Product Weight | 24 lbs (10.9 kg) | 26 lbs (11.8 kg) |

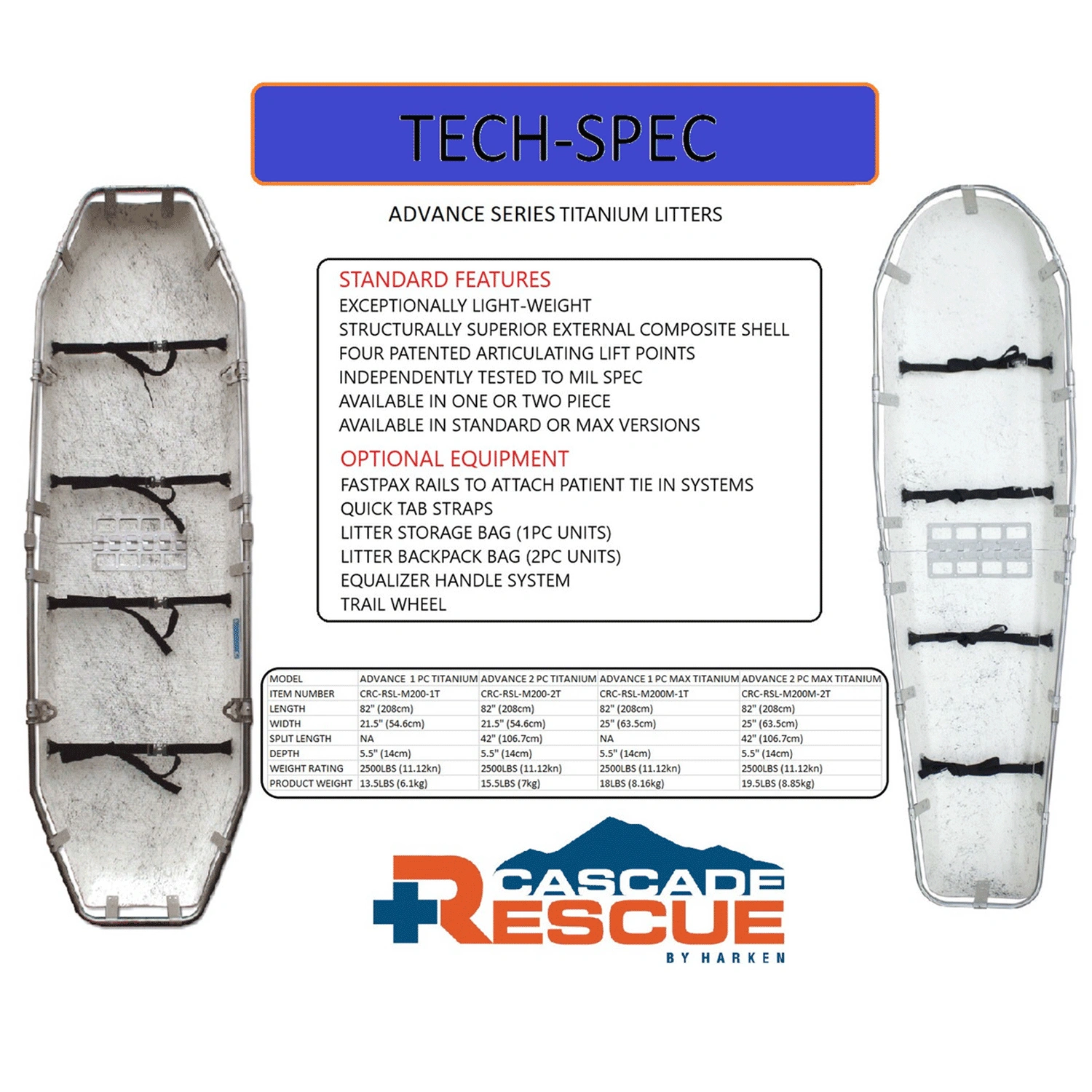

Titanium Litter Specifications
| Model | Advance 1 Piece MAX | Advance 2 Piece MAX |
| Item Number | CRC-RSL-M200M-1T | CRC-RSL-M200M-2T |
| Length | 82' (208 cm) | 82' (208 cm) |
| Width | 25' (63.5 cm) | 25' (63.5 cm) |
| Split Length | N/A | 42' (106.7 cm) |
| Depth | 5.5' (14 cm) | 5.5' (14 cm) |
| Weight Rating | 2500 lbs (11.12 kN) | 2500 lbs (11.12 kN) |
| Product Weight | 18 lbs (8.16 kg) | 19.5 lbs (8.85 kg) |

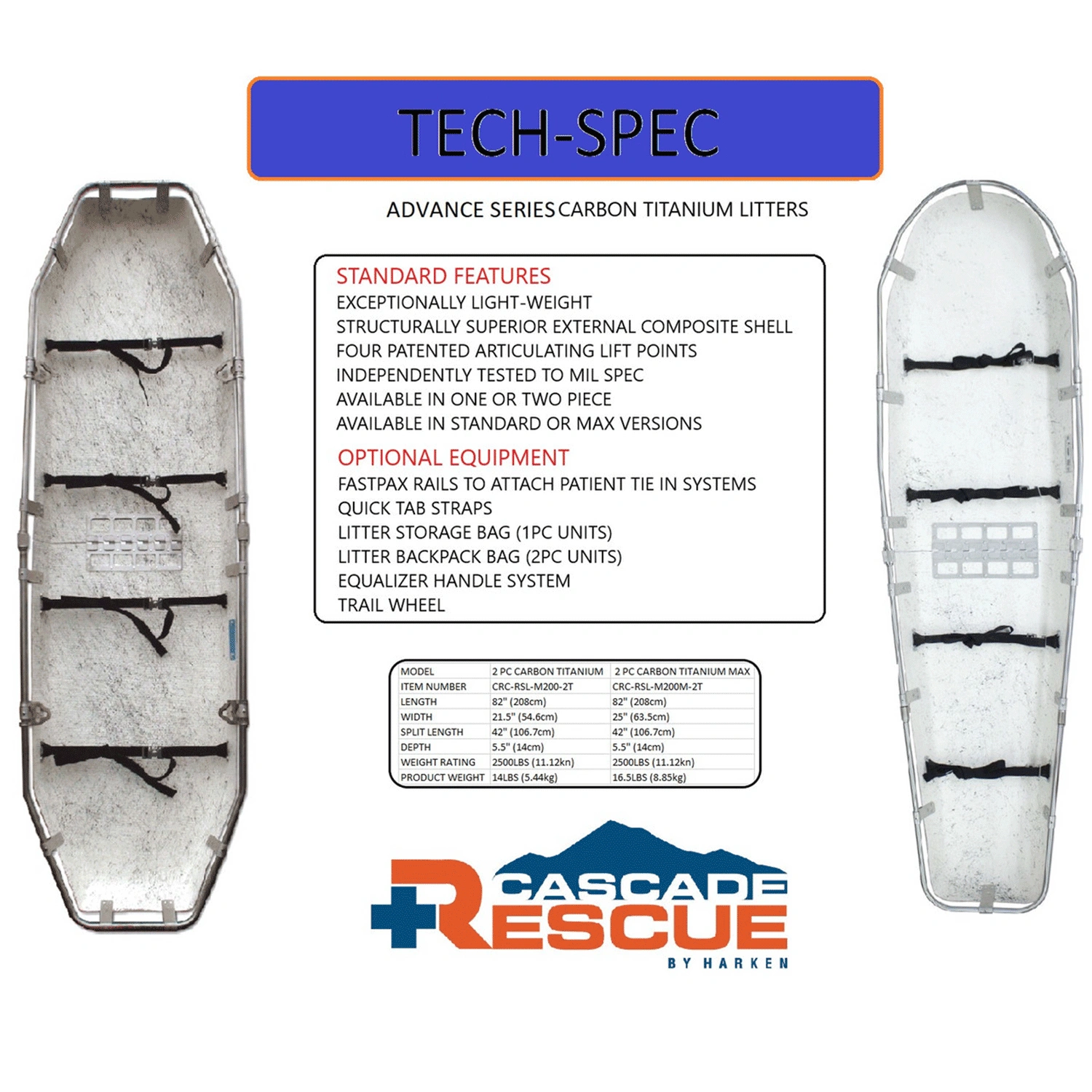

Titanium / Carbon Litter Specifications
| Model | Advance 2 Piece MAX |
| Item Number | CRC-RSL-M200M-2T |
| Length | 82' (208 cm) |
| Width | 25' (63.5 cm) |
| Split Length | 42' (106.7 cm) |
| Depth | 5.5' (14 cm) |
| Weight Rating | 2500 lbs (11.12 kN) |
| Product Weight | 16.5 lbs (7.48 kg) |
